Title page
Neevia
docuPrinter SDK
user’s manual
version
7.3
License Agreement
ELECTRONIC END USER LICENSE AGREEMENT
For One (1) Computer
This is an End User License Agreement. This is a contract. If you install this software, you must abide by the terms of this agreement. This license is applicable to all software products sold by Neevia Technology. The term software includes upgrades, modified versions or updates. This software is licensed and not sold. Only a personal, non-transferable and nonexclusive right to use the Neevia products is granted to the end user.
The following are definitions that should be noted by the user:
- COMPUTER
This is a single computer owned, rented or leased by a single individual or entity on which one or more applications load and execute software in the memory space of that computer. Software is installed on a server, physical or virtual, for one or more users. All servers must be licensed to utilize Neevia software.
THIS IS A CONTRACT BETWEEN YOU AND NEEVIA TECHNOLOGY. YOU SHOULD CAREFULLY READ THIS LICENSING AGREEMENT AND MUST ACCEPT ALL THE TERMS AND CONDITIONS BEFORE INSTALLING THIS NEEVIA SOFTWARE. BY INSTALLING THE SOFTWARE, YOU ARE AGREEING TO BE BOUND BY THE TERMS AND CONDITIONS OF THIS LICENSE. IF YOU DO NOT AGREE TO THE TERMS OF THIS LICENSE, DO NOT INSTALL THE SOFTWARE, AND DO NOT USE THE SOFTWARE. IF YOU VIOLATE THIS AGREEMENT, YOU WILL BE SUBJECT TO LEGAL ACTION BY NEEVIA TECHNOLOGY.
Subject to the payment of applicable license fees, Neevia Technology grants you a nonexclusive right to use its accompanying Neevia software product and related documents (the Software) in the terms and conditions provided as follow:
LICENSE
Until such time as Neevia Technology has issued a valid serial number to you, you may only use this software for a 30-day trial period. You agree to remove any copies of the software after the expiration of the trial period. No license is issued to you until you are issued a valid serial number.
You cannot use a license for the software concurrently on different computers. You may install and use the Software in a single location on a hard disk or other storage device of one computer only.
(a) Personal Use:
The primary user of each computer on which the Software is installed or used may also install the Software on one home or portable computer. However another person may not use the Software on a secondary computer at the same time the Software on the primary computer is being used.
(b) Server or Network Use:
You may keep one copy of the Software on a single file server only for the purposes of downloading and installing the Software onto a hard disk of up to the Permitted Number of Computers that are on the same network as the file server. No other network use is permitted.
(c) Operating system or Language versions:
If you receive two or more copies of the Software with different operating systems or language versions, the total aggregate number of computers on which all versions of the Software are used may not exceed the Permitted Number of Computers. You may not rent, lease, sublicense, lend or transfer versions or copies of the Software you do not use, or Software contained on any unused media.
(d) Archiving:
You may make one copy of the Software solely for archival purposes. If the Software is an upgrade, you may use the Software only in conjunction with upgraded product. If you receive your first copy of the Software electronically, and a second copy on media afterward, the second copy can be used for archival purposes only.
For all Neevia Technology products, you agree that you will only use our software on a server and all applications that will access the server will reside on the server and you will not permit remote access to the software except through your application residing on the server. You agree to surrender your license(s) if you violate this agreement. If you violate this agreement, you will not receive a refund upon termination of this license. You agree not to utilize our software to violate the copyright of any third parties. If you do violate the copyright of a third party utilizing our software, you agree to hold Neevia Technology harmless and will indemnify Neevia Technology for any such activity even if the violation is unintentional.
COPYRIGHT
The Software is owned by Neevia Technology and/or its suppliers, and is protected by the copyright and trademark laws of the United States and related applicable laws. You may not copy the Software except as set forth in the "License" section. Any copies that you are permitted to make pursuant to this Agreement must contain the same copyright and other proprietary notices that appear on or in the Software.
You may not rent, lease, sub-license, transfer, or sell the Software. You may not modify, translate, reverse engineer, decompile, disassemble, or create derivative works based on the Software, except to the extent applicable law expressly prohibits such foregoing restriction. You may use the trademarks to identify the Software owner's name, or to identify printed output produced by the Software. Such use of any trademark does not give you any rights of ownership in that trademark.
NO WARRANTY LICENSED SOFTWARE (S) - "AS IS"
The Software is provided AS IS. NEEVIA TECHNOLOGY AND ITS SUPPLIERS MAKE NO WARRANTIES, EXPRESS OR IMPLIED, AS TO THE MERCHANTABILITY, QUALITY, NONINFRINGEMENT OF THIRD PARTY RIGHTS, FITNESS FOR A PARTICULAR PURPOSE, AND THOSE ARISING BY STATUTE OR OTHERWISE IN LAW OR FROM A COURSE OF DEALING OR USAGE OF TRADE. THE ENTIRE RISK AS TO THE QUALITY, RESULTS BY USING THE SOFTWARE, AND PERFORMANCE OF THE SOFTWARE IS WITH THE END USER. Some states or jurisdictions do not allow the exclusion or limitation of incidental, consequential or special damages, or the exclusion of implied warranties or limitations on how long an implied warranty may last, so the above limitations may not apply to you or your company.
LIMITATION OF REMEDIES AND LIABILITY
NEEVIA TECHNOLOGY OR ITS SUPPLIERS OR RESELLERS SHALL NOT UNDER ANY CIRCUMSTANCE BE LIABLE TO YOU FOR ANY DAMAGES, INCLUDING BUT NOT LIMITED TO SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, LOST PROFITS OR LOST SAVINGS, OR FOR ANY CLAIM BY A THIRD PARTY, ARISING OUT OF THE USE OR INABILITY TO USE THE SOFTWARE, EVEN IF NEEVIA TECHNOLOLGY SHALL HAVE BEEN INFORMED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER PARTY.
GENERAL
This Agreement shall be construed, interpreted, and governed by the laws of the State of Florida, excluding the application of its conflicts of law rules. The United Nations Convention on Contracts of the International Sale of Goods, will not govern this Agreement. If any part of this Agreement is found void and unenforceable, it will not affect the validity of the rest of the Agreement, which shall remain valid and enforceable according to its terms.
If you need to redistribute this product with your own software products, you need to contact Neevia and negotiate a separate licensing and royalty agreement.
You may not ship, transfer, or export the Software into any country or used in any manner prohibited by any export laws, restrictions or regulations.
UPGRADES
You must be properly licensed to install upgrades to Neevia Software products. Neevia upgrades replace and or supplement the previous product that formed the basis for your eligibility to for the upgrade. You may use the upgrade only in accordance with the terms of this Agreement. Upgrades may not be separated and used on separate computers.
GOVERNEMENT USERS
For United States government users, the Software and associated Documentation are deemed to be "commercial computer software" and "commercial computer documentation", respectively pursuant to DFAR 227.7202 and FAR 12.212(b) as applicable.
ENTIRE AGREEMENT
You acknowledge that you have read this Agreement, understand it and agree to be bounded by its terms and conditions. It is the complete and exclusive statement of the Agreement between us, which supersedes any proposal or prior agreement, oral or written, and other communication between us relating to the subject matter of this Agreement.
CONTACT INFORMATION
NEEVIA TECHNOLOGY
Tel: (954) 893.9343
Email: info@neevia.com
Web: www.neevia.com
Table of Contents
Installing and Uninstalling Neevia docuPrinter SDK
Neevia docuPrinter SDK COM object
Neevia docuPrinter SDK .NET assembly
Neevia docuPrinter SDK Type Library (TLB file)
PDF Viewer specific properties
Watermark and Stationery Properties
User Interface specific properties
OpenInPDFdesktopAfterConversion
Example 1. Create a PDF file from Visual Basic
Example 2. Convert a Word document to PDF from Visual Basic
Example 3. Convert a Word document to PDF from Visual Basic via docuPrinter Word Macro
Example 4. Convert an Excel document to PDF from Visual Basic
Example 5. Convert a PowerPoint document to PDF from Visual Basic
Example 6. Convert a PowerPoint document to PDF from Visual Basic
Example 7. Convert an Access report to PDF from Visual Basic
Example 8. Convert an URL / HTML to PDF from Visual Basic
Introduction
docuPrinter SDK is a software development tool that can be used by developers and programmers to control docuPrinter LT, Pro or TSE and programmatically create PDF or Image files from their own applications.
docuPrinter SDK works on every Windows operating system from Windows 7 to Windows Server 2022 and because it includes both C/C++ libraries and ActiveX controls, the functionality of the product can be accessed from most programming languages like C, C++, Visual Basic, Delphi, MS FoxPro, and MS Access. DocuPrinter SDK is also .NET compatible meaning that VB.NET, C# and J# programmers can also take full advantage of the product.
System Requirements
Supported Operation Systems
The operating systems listed below (both 32 and 64 bit) have been
tested with docuPrinter SDK and are officially supported:
Windows 7, 8, 10, 11, 2008, 2012, 2016, 2019, 2022.
Recommended hardware
· Standard PC; 500MHz or faster compatible x86 processor;
· RAM: 512MB RAM minimum;
· Hard-disk: 50MB free space recommended;
Output Formats
If you have docuPrinter LT installed on the computer, docuPrinter SDK only supports PDF, PDF/A (1b, 2b, 3b, 2u, 3u) and PostScript as output formats. If you have docuPrinter Pro or TSE installed, docuPrinter SDK supports the following output formats:
· PDF (Portable Document Format) v1.3, v1.4, v1.5, v1.6, v1.7, v2.0;
· PDF/A -1b, 2b, 3b, 2u, 3u ;
· PostScript level 1, 1.5, 2, 3;
· TIFF (uncompressed, LZW, Packbits, G3, G4);
· JPEG;
· PCX;
· PNG;
· BMP;
· EPS level 1, 1.5, 2, 3;
· PSD (Adobe PhotoShop);
· HP PCL-XL (color and mono);
· Text;
Installing and Uninstalling Neevia docuPrinter SDK
Before installing and/or using this product, please make sure you carefully read the copyright notice and agree to all of its terms. If you have any questions about the licensing agreement, please feel free to call (954) 981.9252 or email sales@neevia.com.
If you are using an earlier version of Neevia docuPrinter SDK on your system, it is recommended that you uninstall it before installing Neevia docuPrinter SDK v7.3.
To install Neevia docuPrinter SDK:
If you already have docuPrinter LT, PRO or TSE installed on your computer:
download and save the https://neevia.com/download/dpsdk file to your hard disk. After downloading the file, double-click it and follow the instructions. The installation procedure automatically detects your operating system, copies the needed files to your system directory and installs Neevia docuPrinter SDK.
If you don’t have docuPrinter LT, PRO or TSE installed on your computer:
download and install one of the above products then download and save docuPrinter SDK to your hard disk. After that double-click on it and follow the instructions. The installation procedure automatically detects your operating system, copies the needed files to your system directory and installs docuPrinter SDK.
Unattended installation:
To perform an unattended (silent) installation launch docuPrinter SDK installer with /sp /verysilent /norestart command line switches. Here is the full list of supported switches:
/SP
Disables the "This will install... Do you wish to continue?" prompt at the beginning of Setup.
/SILENT, /VERYSILENT
Instructs Setup to be silent or very silent. When Setup is silent the wizard and the background window are not displayed but the installation progress window is. When a setup is very silent this installation progress window is not displayed. Everything else is normal so for example error messages during installation are displayed and the startup prompt is (if you haven't disabled it with '/SP-' command line option explained above). If a restart is necessary and the '/NORESTART' command isn't used (see below) and Setup is silent, it will display a “Reboot now?” dialog. If it's very silent it will reboot without asking.
/NOCANCEL
Prevents the user from canceling during the installation process, by disabling the Cancel button and ignoring clicks on the close button. Useful along with /SILENT.
/NORESTART
Instructs Setup not to reboot even if it's necessary.
/DIR="x:\dirname"
Overrides the default directory name displayed on the Select Destination Directory wizard page. A fully qualified pathname must be specified.
/GROUP="folder
name"
Overrides the default folder name displayed on the Select Start Menu Folder wizard page.
/user="username", /company="company name", /serial="serial number"
Use these switches to pass the registration info (username, company name and serial number) to the installer.
To remove Neevia docuPrinter SDK from your system:
1. Select Settings -> Control Panel from the Start menu.
2. In the Control Panel click Add/Remove programs and select docuPrinter SDK from the list.
3. Click the Add/Remove button to remove the program.
A confirmation prompt is displayed.
Unattended uninstall:
To perform an unattended (silent) uninstall, launch unins000.exe from the folder where docuPrinter SDK has been installed, with /verysilent /norestart command line switches. Here is the full list of supported switches:
/SILENT, /VERYSILENT
When specified, the uninstaller will not ask the user for startup confirmation or display a message stating that uninstall is complete. Shared files that are no longer in use are deleted automatically without prompting. Any critical error messages will still be shown on the screen. When '/VERYSILENT' is specified, the uninstallation progress window is not displayed. If a restart is necessary and the '/NORESTART' command isn't used (see below) and '/VERYSILENT' is specified, the uninstaller will reboot without asking.
/NORESTART
Instructs the uninstaller not to reboot even if it's necessary.
NOTE: before calling the docuPrinter SDK COM object, make sure that you have
docuPrinter LT, PRO or TSE installed.
Neevia docuPrinter SDK COM object
Class ID
docuPrinter.SDK
Example:
Visual Basic: Set DPSDK = CreateObject("docuPrinter.SDK")
Delphi: DPSDK := CreateOLEObject(‘docuPrinter.SDK’);
ASP: Set DPSDK = Server.CreateObject("docuPrinter.SDK")
VC#: first add a reference in your project to docuPrinter library
docuPrinter.SDK DPSDK = new docuPrinter.SDK();
Neevia docuPrinter SDK .NET assembly
The docuPrinter SDK .NET assembly is located under C:\program files (x86)\neevia.com\docuPrinterSDK\.Net\
Neevia docuPrinter SDK Type Library (TLB file)
The docuPrinter SDK Type Library is located under C:\program files (x86)\neevia.com\docuPrinterSDK\TLB\
Properties
DocumentOutputFolder
Sets the output folder.
Syntax
DPSDK.DocumentOutputFolder = value
Data type: String
Note: If the output folder doesn’t exist it will be automatically created.
DocumentOutputName
Sets the output document name.
Syntax
DPSDK.DocumentOutputName = value
Data type: String
Note: You can use the following variables %title%, %date%, %guid%, %time% in the document name.
%title% - will insert the document title as sent from the printing application;
%date% - will insert the current date;
%guid% - will insert a unique identifier;
%time% - will insert the current time;
DocumentOutputFormat
Sets the output format.
Possible values: ”PDF”, ”PDFA”, “PDFA2”, “PDFA3”, PDFA2u”, PDFA3u”, ”PS”, ”EPS”, ”TXT”, ”JPG”, ”TIF”, ”PNG”, ”PCX”, ”BMP”, ”PSD”, ”PXL”.
Syntax
DPSDK.DocumentOutputFormat = value
Data type: String
Note: docuPrinter LT only supports "PDF", "PDFA", "PDFA2", "PDFA3" "PDFA2u", "PDFA3u" and "PS" output formats.
When PDFA is specified the output will be PDF/A-1b. To obtain a PDF/A-2b or 3b file you’ll have to use PDFA2 or PDFA3.
DocumentResolution
Sets the output resolution (in dpi).
Syntax
DPSDK.DocumentResolution = value
Data type: String
Note: to specify horizontal and vertical resolutions insert "x" between them. For ex: DPSDK.DocumentResolution="300x300".
PDF Specific Properties
DocumentTitle
Sets the title field in the output document.
Syntax
DPSDK.DocumentTitle = value
Data type: String
Note: Will have effect only if DocumentOutputFormat="PDF".
DocumentAuthor
Sets the author field in the output document.
Syntax
DPSDK.DocumentAuthor = value
Data type: String
Note: Will have effect only if DocumentOutputFormat="PDF".
DocumentSubject
Sets the subject field in the output document.
Syntax
DPSDK.DocumentSubject = value
Data type: String
Note: Will have effect only if DocumentOutputFormat="PDF".
DocumentKeywords
Sets the keywords field in the output document.
Syntax
DPSDK.DocumentKeywords = value
Data type: String
Note: Will have effect only if DocumentOutputFormat="PDF".
OptimizePDFfor
Possible values: "default", "screen", "printer", "prepress".
Syntax
DPSDK.OptimizePDFfor = value
Data type: String
Note: Will have effect only if DocumentOutputFormat="PDF".
For your convenience there are several sets of predefined settings for creating PDF files.
These settings are designed to balance file size with quality, depending on how the PDF file will to be used:
• default - is intended to be useful across a wide variety of uses, possibly at the expense of a larger output file. All color and grayscale images are downsampled at 72 dpi, monochrome images at 300 dpi; subsets of all fonts used in the file are embedded; and all information is compressed. PDF files created using this setting are compatible with Acrobat 4.0 (and later).
• screen - is for PDF files that will be displayed on the World Wide Web or an intranet, or that will be distributed through an e-mail system for on-screen viewing. This set of options uses compression, downsampling, and a relatively low resolution; converts all colors to RGB; maintains compatibility with Acrobat 3.0; to create a PDF file that is as small as possible.
• printer - is for PDF files that are intended for desktop printers, digital copiers, publishing on a CD-ROM, or to send to a client as a publishing proof. In this set of options, file size is still important, but it is not the only objective. This set of options uses compression and downsampling to keep the file size down, tags everything for color management, and prints to a medium resolution to create a reasonably accurate rendition of the original document.
• prepress - is for PDF files that will be printed as high-quality final output to an imagesetter or platesetter, for example. In this case, file size is not a consideration. The objective is to maintain all the information in a PDF file that a commercial printer or service bureau will need to print the document correctly. This set of options downsamples color and grayscale images at 300 dpi, monochrome images at 1200 dpi, embeds subsets of all fonts used in the file, prints to a higher resolution, and uses other settings to preserve the maximum amount of information about the original document.
PDFLinearized
Specifies whether the output PDF document should be linearized or not.
PDF linearization is a way to optimize PDF files for more efficient viewing over the web. Pages are loaded faster and the user does not have to wait until the entire PDF file is uploaded by the browser.
Possible values: true, false
Syntax
DPSDK.PDFLinearized = value
Data type: Boolean
Note: Will have effect only if DocumentOutputFormat="PDF" and will not work if PDFEncryption=true.
PDFCompatibilityLevel
Sets the compatibility level (a.k.a. PDF version) of the output PDF document.
Possible values:
|
1.3 |
(Acrobat Reader v4-and-later compatible) |
|
1.4 |
(Acrobat Reader v5-and-later compatible) |
|
1.5 |
(Acrobat Reader v6-and-later compatible) |
|
1.6 |
(Acrobat Reader v7-and-later compatible) |
|
1.7 |
(Acrobat Reader v8-and-later compatible) |
|
|
|
Syntax
DPSDK.PDFCompatibilityLevel = value
Data type: String
Note: Will have effect only if DocumentOutputFormat="PDF".
PDFAutoRotatePage
Sets the orientation of the output document based on text content.
Possible values:
|
None |
(will disable the Auto-Rotate page option) |
|
PageByPage |
(will rotate each page based on the direction of the text on that page) |
|
All |
(will rotate all pages in the document based on the orientation of the majority of text) |
Syntax
DPSDK.PDFAutoRotatePage = value
Data type: String
Note: Will have effect only if DocumentOutputFormat="PDF".
PDFEmbedAllFonts
Specifies whether the fonts in the output document should be embedded or not.
Possible values: true, false
Syntax
DPSDK.PDFEmbedAllFonts = value
Data type: Boolean
Note: Will have effect only if DocumentOutputFormat="PDF".
PDFProcessColorModel
Sets the color model for the output document.
Possible values: "DeviceRGB", "DeviceCMYK", "DeviceGRAY".
Syntax
DPSDK.PDFProcessColorModel = value
Data type: String
Note: Will have effect only if DocumentOutputFormat="PDF" and will not affect images and shadings.
PDFCompressPages
Specifies whether text and line art in the output document should be compressed or not.
Possible values: true, false
Syntax
DPSDK.PDFCompressPages = value
Data type: Boolean
Note: Will have effect only if DocumentOutputFormat="PDF".
PDFSubsetFonts
Indicates whether or not to include in the output document only those characters from a font that are used in the document.
Possible values: true, false
Syntax
DPSDK.PDFSubsetFonts = value
Data type: Boolean
Note: Will have effect only if DocumentOutputFormat="PDF".
PDFFontsMaxSubset
Sets the SubsetFonts threshold. If the percentage of used characters (compared with total characters of the particular font) exceeds this threshold, the entire font is embedded.
Possible values: 0...100.
Syntax
DPSDK.PDFFontsMaxSubset = value
Data type: Long
Note: Will have effect only if DocumentOutputFormat="PDF".
ConvertCMYKImagesToRGB
Specifies whether the CMYK images in the output document should be converted to RGB or not.
Possible values: true, false
Syntax
DPSDK.ConvertCMYKImagesToRGB = value
Data type: Boolean
Note: Will have effect only if DocumentOutputFormat="PDF".
CompressColorImages
Specifies whether the color images in the output document should be compressed or not.
Possible values: true, false
Syntax
DPSDK.CompressColorImages = value
Data type: Boolean
Note: Will have effect only if DocumentOutputFormat="PDF".
CompressGrayImages
Specifies whether the gray images in the output document should be compressed or not.
Possible values: true, false
Syntax
DPSDK.CompressGrayImages = value
Data type: Boolean
Note: Will have effect only if DocumentOutputFormat="PDF".
CompressMonoImages
Specifies whether the mono images in the output document should be compressed or not.
Possible values: true, false
Syntax
DPSDK.CompressMonoImages = value
Data type: Boolean
Note: Will have effect only if DocumentOutputFormat="PDF".
ColorCompressMethod
Sets the color images compression method.
Possible values: "Automatic", "JPEG-maximum", "JPEG-high", "JPEG-medium", "JPEG-low",
"JPEG-minimum", "ZIP".
Syntax
DPSDK.ColorCompressMethod = value
Data type: String
Note: Will have effect only if DocumentOutputFormat="PDF".
GrayCompressMethod
Sets the gray images compression method.
Possible values: "Automatic", "JPEG-maximum", "JPEG-high", "JPEG-medium", "JPEG-low",
"JPEG-minimum", "ZIP".
Syntax
DPSDK.GrayCompressMethod = value
Data type: String
Note: Will have effect only if DocumentOutputFormat="PDF".
MonoCompressMethod
Sets the monochrome images compression method.
Possible values:
|
CCITT |
(Compress monochrome images using the CCITT group 4 fax compression method) |
|
ZIP |
(Compress monochrome images using ZIP-compatible compression.) |
Syntax
DPSDK.MonoCompressMethod = value
Data type: String
Note: Will have effect only if DocumentOutputFormat="PDF".
ColorImageResolution
Sets the resolution for color images in the output document.
Possible values: 10...2400.
Syntax
DPSDK.ColorImageResolution = value
Data type: Long
Note: Will have effect only if DocumentOutputFormat="PDF" and DownsampleColorImages=true.
GrayImageResolution
Sets the resolution for gray images in the output document.
Possible values: 10...2400.
Syntax
DPSDK.GrayImageResolution = value
Data type: Long
Note: Will have effect only if DocumentOutputFormat="PDF" and DownsampleGrayImages=true.
MonoImageResolution
Sets the resolution for monochrome images in the output document.
Possible values: 10...2400.
Syntax
DPSDK.MonoImageResolution = value
Data type: Long
Note: Will have effect only if DocumentOutputFormat="PDF" and DownsampleMonoImages=true.
DownsampleColorImages
Specifies whether color images in the output document should be downsampled or not.
Possible values: true, false
Syntax
DPSDK.DownsampleColorImages = value
Data type: Boolean
Note: Will have effect only if DocumentOutputFormat="PDF".
DownsampleGrayImages
Specifies whether gray images in the output document should be downsampled or not.
Possible values: true, false
Syntax
DPSDK.DownsampleGrayImages = value
Data type: Boolean
Note: Will have effect only if DocumentOutputFormat="PDF".
DownsampleMonoImages
Specifies whether monochrome images in the output document should be downsampled or not.
Possible values: true, false
Syntax
DPSDK.DownsampleMonoImages = value
Data type: Boolean
Note: Will have effect only if DocumentOutputFormat="PDF".
MaxInlineImageSize
Specifies the maximum size of an inline image in bytes.
Default value: 4000
Syntax
DPSDK.MaxInlineImageSize = value
Data type: Integer
For images larger than this size, docuPrinter will create an XObject instead of embedding the image into the content stream. Note that redundant inline images must be embedded each time they occur in the document, while multiple references can be made to a single XObject image. Therefore it may be advantageous to set a small or zero value if the source document is expected to contain multiple identical images, reducing the size of the generated PDF.
ColorImageDownsampleType
Sets the color images downsample algorithm.
Possible values: "Bicubic", "Average", "Subsample".
Syntax
DPSDK.ColorImageDownsampleType = value
Data type: String
Note: Will have effect only if DocumentOutputFormat="PDF" and DownsampleColorImages=true.
To resample color, grayscale, or monochrome images, docuPrinter combines pixels in a sample area to make one larger pixel.
You provide the resolution of your output device in dots per inch (dpi) and select the resample algorithm:
Average Downsample – this algorithm averages the pixels in a sample area and replaces the entire area with the average pixel color at the specified resolution.
Subsample – this algorithm chooses a pixel in the center of the sample area and replaces the entire area with that pixel at the specified resolution. Subsample significantly reduces the conversion time compared with downsampling but results in images that are less smooth and continuous.
Bicubic Downsample – this algorithm uses a weighted average to determine pixel color and usually yields better results than the simple averaging method of downsampling. Bicubic is the slowest but most precise method, resulting in the smoothest tonal gradations.
GrayImageDownsampleType
Sets the gray images downsample algorithm.
Possible values: "Bicubic", "Average", "Subsample".
Syntax
DPSDK.GrayImageDownsampleType = value
Data type: String
Note: Will have effect only if DocumentOutputFormat="PDF" and DownsampleGrayImages=true.
MonoImageDownsampleType
Sets the monochrome images downsample algorithm.
Possible values: "Bicubic", "Average", "Subsample".
Syntax
DPSDK.MonoImageDownsampleType = value
Data type: String
Note: Will have effect only if DocumentOutputFormat="PDF" and DownsampleMonoImages=true.
Resampling monochrome images can have unexpected viewing results, such as no image display. If this happens, turn off resampling and convert the file again. This problem is most likely to occur with subsample and least likely with bicubic downsample algorithm.
PDF/A Specific Properties
OutputIntent
Sets the document output intent.
Possible values: "SRGB", "JC200103", "FOGRA27", "SWOP", "GRAY".
Syntax
DPSDK.OutputIntent = value
Data type: String
Note: Will have effect only if DocumentOutputFormat="PDFA".
PDF Encryption Properties
All Neevia (and Adobe) products enforce the restrictions set by PDF Security (encryption). However, not all third party products fully support and respect these settings. Recipients using such third party products may be able to bypass some of the restrictions you have set.
PDFEncryption
Specifies whether the output PDF document should be encrypted or not.
Possible values: true, false
Syntax
DPSDK.PDFEncryption = value
Data type: Boolean
Note: Will have effect only if DocumentOutputFormat="PDF".
PDFEncryptionType
Sets the PDF encryption algorithm.
Possible values:
|
40 |
(40 bits encryption – Acrobat 3-and-later compatible) |
|
128 |
(128 bits encryption – Acrobat 5-and-later compatible) |
|
256 |
(256 bits encryption – Acrobat 9-and-later compatible) |
Syntax
DPSDK.PDFEncryptionType = value
Data type: Long
Note: Will have effect only if DocumentOutputFormat="PDF".
PDFUserPassword
Sets the user password in the output document.
Users will be asked to enter this password before Acrobat Reader allows them to view the document.
Syntax
DPSDK.PDFUserPassword = value
Data type: String
Note: Will have effect only if DocumentOutputFormat="PDF".
PDFOwnerPassword
Sets the owner password in the output document.
Users will be forced to enter this password before Acrobat Reader allows them to change the user password and security permissions.
Syntax
DPSDK.PDFOwnerPassword = value
Data type: String
Note: Will have effect only if DocumentOutputFormat="PDF".
PDFNoCopyPermission
Specifies whether the user of the output document is allowed to copy text and graphics from the document.
Possible values: true, false
Syntax
DPSDK.PDFNoCopyPermission = value
Data Type: Boolean
Note: Will have effect only if DocumentOutputFormat="PDF" and PDFEncryptionType=40.
PDFNoPrintPermission
Specifies whether the user of the output document is allowed to print the document.
Possible values: true, false
Syntax
DPSDK.PDFNoPrintPermission = value
Data Type: Boolean
Note: Will have effect only if DocumentOutputFormat="PDF" and PDFEncryptionType=40.
PDFNoChangePermission
Specifies whether the user of the output document is allowed to change the document.
Possible values: true, false
Syntax
DPSDK.PDFNoChangePermission = value
Data Type: Boolean
Note: Will have effect only if DocumentOutputFormat="PDF" and PDFEncryptionType=40.
PDFNoAddPermission
Specifies whether the user of the output document is allowed to add or change comments and form fields in the document.
Possible values: true, false
Syntax
DPSDK.PDFNoAddPermission = value
Data Type: Boolean
Note: Will have effect only if DocumentOutputFormat="PDF" and PDFEncryptionType=40.
PDFContentAccess
Specifies whether the user of the output document is allowed to use the document contents, which is required to support the Acrobat Accessibility feature.
Possible values: true, false
Syntax
DPSDK.PDFContentAccess = value
Data Type: Boolean
Note: Will have effect only if DocumentOutputFormat="PDF" and PDFEncryptionType=128 or 256.
Do not mix this property with PDFNoCopyPermission, PDFNoPrintPermission, PDFNoChangePermission and PDFNoAddPermission properties.
PDFAllowExtraction
Specifies whether the user of the output document is allowed to select and copy the document contents.
Possible values: true, false
Syntax
DPSDK.PDFAllowExtraction = value
Data Type: Boolean
Note: Will have effect only if DocumentOutputFormat="PDF" and PDFEncryptionType=128 or 256
Do not mix this property with PDFNoCopyPermission, PDFNoPrintPermission, PDFNoChangePermission and PDFNoAddPermission properties.
PDFChangesAllowed
Specifies the allowed document changes.
Possible values:
|
0 |
(None - will prevent users from doing anything with the file, including filling in signature and form fields) |
|
1 |
(Only Document Assembly - will let users insert, delete, and rotate pages, and create bookmarks and thumbnails) |
|
2 |
(Only Form Field Fill-in or Signing - will let users sign and fill in forms, but not create them) |
|
3 |
(Comment Authoring, Form Field Fill-in or Signing - will let users do everything described in the previous options, plus add comments) |
|
4 |
(General Editing, Comment and Form Field Authoring - will let users do anything to the document except extract contents and print). |
Syntax
DPSDK.PDFChangesAllowed = value
Data Type: Integer
Note: Will have effect only if DocumentOutput format="PDF" and PDFEncryptionType=128 or 256
Do not mix this property with PDFNoCopyPermission, PDFNoPrintPermission, PDFNoChangePermission and PDFNoAddPermission properties.
PDFPrintingPermissions
Sets the output document printing permissions.
|
0 |
(Not Allowed – will prevent users from printing the document) |
|
1 |
(Low Resolution – will let users print, but at a resolution that prevents from recreating the PDF file with different security settings. Printing may be slower because each page will be printed as a bitmapped image.) |
|
2 |
(Fully Allowed – will let users print at any resolution, directing high-quality vector output to PostScript and other printers that support advanced high-quality printing features). |
Possible values:
Syntax
DPSDK.PDFPrintingPermissions = value
Data Type: Integer
Note: Will have effect only if DocumentOutputFormat="PDF" and PDFEncryptionType=128 or 256
Do not mix this property with PDFNoCopyPermission, PDFNoPrintPermission, PDFNoChangePermission and PDFNoAddPermission properties.
PDF Viewer specific properties
HideToolBar
Hide the toolbar when PDF is opened in Adobe Acrobat Reader.
Syntax
DPSDK.HideToolBar = value
Data type: Boolean
Note: Will have effect only if DocumentOutputFormat="PDF".
HideMenuBar
Hide the menu bar when PDF is opened in Adobe Acrobat Reader.
Syntax
DPSDK.HideMenuBar = value
Data type: Boolean
Note: Will have effect only if DocumentOutputFormat="PDF".
HideMainWindow
Hide the main window when PDF is opened in Adobe Acrobat.
Syntax
DPSDK.HideMainWindow = value
Data type: Boolean
Note: Will have effect only if DocumentOutputFormat="PDF".
PDFOpenView
Specifies the output document initial view.
Possible values:
|
0 |
(Page only) |
|
1 |
(Page and bookmarks) |
|
2 |
(Page and thumbnails). |
|
3 |
(Full screen) |
Syntax
DPSDK.PDFOpenView = value
Data type: Long
Note: Will have effect only if DocumentOutputFormat="PDF".
PDFOpenAtPage
Specifies the page output document should open at.
Syntax
DPSDK.PDFOpenAtPage = value
Data type: Long
PDFOpenMagnification
Specifies the open magnification for the output document.
Possible values:
|
0 |
(Default) |
|
1 |
(Fit Window) |
|
2 |
(Fit Width) |
|
3 |
(Fit Height) |
|
4 |
(Zoom 25%) |
|
5 |
(Zoom 50%) |
|
6 |
(Zoom 100%) |
|
7 |
(Zoom 125%) |
Syntax
DPSDK.PDFOpenMagnification = value
Data type: Long
Note: Will have effect only if DocumentOutputFormat="PDF".
PDFPageLayout
Specifies the output document page layout.
Possible values:
|
0 |
(Page only) |
|
1 |
(Single Page) |
|
2 |
(Continuous) |
|
3 |
(Continuous-Facing) |
Syntax
DPSDK.PDFPageLayout = value
Data type: Long
Note: Will have effect only if DocumentOutputFormat="PDF".
Watermark and Stationery Properties
StampFontName
Sets the watermark font name.
Syntax
DPSDK.StampFontName = value
Data type: String
StampFontColor
Sets the watermark font color.
Syntax
DPSDK.StampFontColor = value
Example
DPSDK.StampFontColor = "$0000FF"
Data type: String
StampFontSize
Sets the watermark font size (in points).
Syntax
DPSDK.StampFontSize = value
Data type: Long
StampMessage
Sets the watermark text message.
Syntax
DPSDK.StampMessage = value
Data type: String
Note: You can use the following variables:
%PAGE% - current page number
%PAGES% - total number of pages
%WEEKDAY% - full weekday name
%WEEKDAY_SHORT% - abbreviated weekday name
%MONTH% - month number (1-12)
%MONTHNAME% - full month name
%MONTHNAME_SHORT% - abbreviated month name
%YEAR% - year with century (YYYY)
%YEAR_SHORT% - year without century (YY)
%DAY% - day of month
%DAY_YEAR% - day of the year (1 -366)
%HOUR% - hour (01- 12)
%HOURS% - hour (00-23)
%MINUTES% - minutes (00-59)
%SECONDS% - seconds (00-59)
%AMPM% - AM, PM
%DATE% - local date representation. Ex: 11/01/07
%TIME% - local time representation. Ex: 1:17:10 PM
%DATETIME% - local date and time
%AUTHOR% - document Author
%TITLE% - document Title
%SUBJECT% - document Subject
%KEYWORDS% - document Keywords
StampDrawMode
Specifies the text rendering mode. Possible values:
0 - Fill text, no stroke (default)
1 - Stroke text, no fill
2 - Fill then Stroke text
3 - Invisible
Syntax
DPSDK.StampDrawMode = value
Data type: Long
PlaceStampOnPages
Specifies the pages to place watermark on.
Syntax
DPSDK.PlaceStampOnPages = value
Example
DPSDK.PlaceStampOnPages = "0"
Data type: String
Note: Page numbers must be separated by commas. To place watermark on all pages specify 0.
Watermark
Place watermark under the original page content. Default: false
Syntax
DPSDK.Watermark = value
Data type: Boolean
Stamp_X
Sets the watermark X coordinate.
Syntax
DPSDK.Stamp_X = value
Data type: String
Note: Stamp coordinate depends on the page orientation. For portrait oriented pages the coordinate system starts in the left-bottom corner of the page.
Stamp_Y
Sets the watermark Y coordinate.
Syntax
DPSDK.Stamp_Y = value
Data type: String
Note: Stamp coordinate depends on the page orientation. For portrait oriented pages the coordinate system starts in the left-bottom corner of the page.
StampUnits
Specifies the measurement units to use for Stamp_X, Stamp_Y properties. Possible values:
1 inches
2 centimeters
3 millimeters
4 points (default)
Syntax
DPSDK.StampUnits = value
Data type: Long
StampOpacity
Specifies the stamp opacity. Default value: 100
Syntax
DPSDK.StampOpacity = value
Data type: Long
StampRotate
Specifies the stamp rotation angle. Default value: 0
Syntax
DPSDK.StampRotate = value
Data type: Long
StationeryFile
Specifies a PDF file to use as stationery.
Syntax
DPSDK.StationeryFile = value
Data type: String
PlaceStationeryOnPages
Specifies the pages to place stationery on.
Syntax
DPSDK.PlaceStationeryOnPages = value
Example
DPSDK.PlaceStationeryOnPages = "1, 4"
Data type: String
Note: Page numbers must be separated by commas. To place watermark on all pages specify 0.
StationeryAsWatermark
Place stationery under the original page content. Default: false
Syntax
DPSDK.StationeryAsWatermark = value
Data type: Boolean
Stationery_X
Sets the stationery X coordinate.
Syntax
DPSDK.Stationery_X = value
Data type: String
Note: Stamp coordinate depends on the page orientation. For portrait oriented pages the coordinate system starts in the left-bottom corner of the page.
Stationery_Y
Sets the stationery Y coordinate.
Syntax
DPSDK.Stationery_Y = value
Data type: String
Note: Stamp coordinate depends on the page orientation. For portrait oriented pages the coordinate system starts in the left-bottom corner of the page.
StationeryUnits
Specifies the measurement units to use for Stationery_X, Stationery_Y properties. Possible values:
1 inches
2 centimeters
3 millimeters
4 points (default)
Syntax
DPSDK.StationeryUnits = value
Data type: Long
StationeryOpacity
Specifies the stationery opacity. Default value: 100
Syntax
DPSDK.StationeryOpacity = value
Data type: Long
StationeryRotate
Specifies the stationery rotation angle. Default value: 0
Possible values: 0, 90, 180, 270
Syntax
DPSDK.StationeryRotate = value
Data type: Long
Image specific properties
ImageType
Specifies the output image subtype, colors and compression algorithm.
Possible values:
|
jpegcmyk |
JPEG output format, CMYK colorspace |
|
jpeg |
JPEG output format, full color RGB (24 bits) |
|
jpeggray |
JPEG output format, grayscale |
|
pngmono |
PNG output format, monochrome |
|
pnggray |
PNG output format, grayscale |
|
png16 |
PNG output format, 16 colors |
|
png256 |
PNG output format, 256 colors |
|
png16m |
PNG output format, 16 million colors (full color) |
|
pcxmono |
PCX output format, monochrome |
|
pcxgray |
PCX output format, grayscale |
|
pcx16 |
PCX output format, 16 colors |
|
pcx256 |
PCX output format, 256 colors |
|
pcx16m |
PCX output format, 16 million colors (full color) |
|
pcxcmyk |
PCX output format, CMYK (32 bits) |
|
bmpmono |
BMP output format, monochrome |
|
bmpgray |
BMP output format, grayscale |
|
bmp16 |
BMP output format, 16 colors |
|
bmp256 |
BMP output format, 256 colors |
|
bmp16m |
BMP output format, 16 million colors |
|
tiff12nc |
TIFF output format, RGB output – 4 bits / channel, uncompressed |
|
tiff24nc |
TIFF output format, RGB output – 8 bits / channel, uncompressed |
|
tiff32nc |
TIFF output format, CMYK output – 8 bits / channel, uncompressed |
|
tiff12nclzw |
TIFF output format, RGB output – 4 bits / channel, LZW compressed |
|
tiff24nclzw |
TIFF output format, RGB output – 8 bits / channel, LZW compressed |
|
tiff32nclzw |
TIFF output format, CMYK output – 8 bits / channel, LZW compressed |
|
tiffuncomp |
TIFF output format, grayscale, uncompressed |
|
tiffpack |
TIFF output format, grayscale, Packbits (Macintosh RLE) compression |
|
tiffg3 |
TIFF output format, grayscale, G3 fax compression with EOLs |
|
tiffcrle |
TIFF output format, grayscale, G3 fax compression with NO EOLs |
|
Tiffg32d |
TIFF output format, grayscale, G3 2D fax compression |
|
tiffg4 |
TIFF output format, grayscale, G4 fax compression |
|
tifflzw |
TIFF output format, grayscale, LZW compression |
|
psdrgb |
PSD – Adobe PhotoShop output format, full color RGB |
|
psdcmyk |
PSD – Adobe PhotoShop output format, full color CMYK |
|
pxlmono |
PCL-XL output format, monochrome |
|
pxlcolor |
PCL-XL output format, full color |
Syntax
DPSDK.ImageType = value
Data type: String
JPEGImageQuality
Sets the output document (JPEG) quality.
Possible values: 0 .. 100 (75 is recommended)
Syntax
DPSDK.JPEGImageQuality = value
Data type: Long
Note: Will have effect only if DocumentOutputFormat="JPG" and will work with docuPrinter Pro and TSE.
JPEGImageQuality sets the output quality level according to the widely used IJG quality scale, which balances the extent of compression against the fidelity of the image when reconstituted. Lower values drop more information from the image to achieve higher compression, and therefore have lower quality when reconstituted.
MultipageTiff
Specifies whether docuPrinter should create multipage tiff files.
Possible values: true, false
Syntax
DPSDK.MultipageTiff = value
Data type: Boolean
Note: Will have effect only if DocumentOutputFormat="TIF" and will work with docuPrinter Pro and TSE.
If you set MultipageTiff=false docuPrinter will create a single-page tiff file for each page of the original document.
TiffFillOrder
Sets the fill order for the TIFF output format.
Possible values: "lsb2msb", "msb2lsb"
Syntax
DPSDK.TiffFillOrder = value
Data type: String
Note: Will have effect only if DocumentOutputFormat="TIF" and will work with docuPrinter Pro and TSE.
TextAplhaBits
This option controls the use of subsample antialiasing for text content. The subsampling box size should be 4 bits for optimum output, but smaller values can be used for faster rendering.
Possible Values: 0, 1, 2, 4
Syntax
DPSDK.TextAplhaBits = value
Data type: Integer
Note: Will work only with docuPrinter Pro and TSE.
GraphicsAplhaBits
This option controls the use of subsample antialiasing for graphics content. The subsampling box size should be 4 bits for optimum output, but smaller values can be used for faster rendering.
Possible Values: 0, 1, 2, 4
Syntax
DPSDK.GraphicsAplhaBits = value
Data type: Integer
Note: Will work with docuPrinter Pro and TSE.
Because of the way antialiasing blends the edges of shapes into the background when they are drawn some files that rely on joining separate filled polygons together to cover an area may not render as expected with Graphics antialiasing at 2 or 4 bits. If you encounter strange lines within solid areas, try rendering that file again with Graphic antialiasing at 1 bit.
UseCIEColor
Specifies whether docuPrinter should remap the device-dependent color values through a CIE color space. This can improve the conversion of CMYK documents to RGB.
Possible Values: true, false
Syntax
DPSDK.UseCIEColor = value
Data type: Boolean
Note: Will work with docuPrinter Pro and TSE.
Interpolate
Specifies whether docuPrinter should use image interpolation. Enabling image interpolation will result in higher quality for scaled images at the expense of speed.
Possible Values: true, false
Syntax
DPSDK.Interpolate = value
Data type: Boolean
Note: Will work with docuPrinter Pro and TSE.
UseWTS
Specifies whether Well Tempered Screening algorithm should be used for halftoning.
Possible Values: true, false
Syntax
DPSDK.UseWTS = value
Data type: Boolean
Note: Will work with docuPrinter Pro and TSE.
If true, then the Well Tempered Screening algorithm is used for halftoning. Otherwise, a rational tangent algorithm is chosen, which will typically result in significant differences between the screen angle and ruling requested, and actually rendered. Currently, the performance of WTS is reasonably good when rendering to a full page buffer, but not optimized for banded mode.
When printing documents that have more than 1 page, docuPrinter will produce an image file for each page of the original document. The FileMask allows you to control how the single page files will be named - if you set %d docuPrinter will add the page number to the file name. You can also control the number of digits used in the file name by replacing %d with %0Nd where N is the number of digits you want to have, for example %03d will force docuPrinter to produce files with names like this: 'filename001.tif', ... , 'filename010.tif', ... %04d will produce: 'filename0001.tif', ... , 'filename0010.tif', ...
Syntax
DPSDK.FileMask = value
Example
DPSDK.FileMask = “%d”
Data type: String
Note: Will work with docuPrinter Pro and TSE.

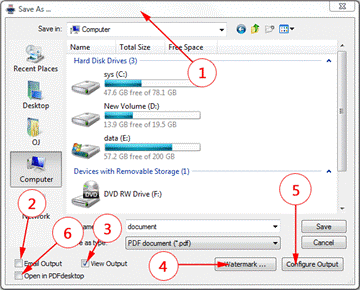

User Interface specific properties
HideSaveAsWindow
Specifies whether to show or hide the docuPrinter "Save As" window.
Syntax
DPSDK.HideSaveAsWindow = value
Data type: Boolean
Note: (1) on the screenshot.
HideWatermarkButton
Specifies whether to show or hide the "Watermark"
button.
Syntax
DPSDK.HideWatermarkButton = value
Data type: Boolean
Note: (4) on the screenshot.
HideConfigureButton
Specifies whether to show or hide the "Configure"
button.
Syntax
DPSDK.HideConfigureButton = value
Data type: Boolean
Note: (5) on the screenshot.
HideEmailCheckBox
Specifies whether to show or hide the "Email Output" checkbox. Note: (2) on the screenshot.
Syntax
DPSDK.HideEmailCheckBox = value
Data type: Boolean
HideViewCheckBox
Specifies whether to show or hide the "View Output" checkbox. Note: (3) on the screenshot.
Syntax
DPSDK.HideViewCheckBox = value
Data type: Boolean
HidePDFdesktopCheckBox
Specifies whether to show or hide the "Open in PDFdesktop" checkbox. Note: (6) on the screenshot.
Syntax
DPSDK.HidePDFdesktopCheckBox = value
Data type: Boolean
Note: Will not work with docuPrinter LT.

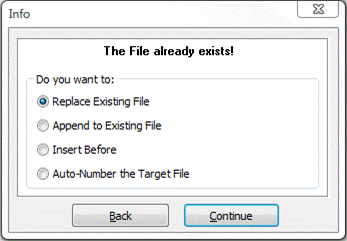

DefaultAction
Specifies whether to
show the
“File already exists” dialog.
Possible values:
0 - show dialog;
1 - hide dialog and replace existing file;
2 - hide dialog and append to existing file;
3 - hide dialog and insert before in the existing file;
4 - hide dialog and auto-number target file;
Syntax
DPSDK.DefaultAction = value
Data type: Long
ViewDocumentAfterConversion
Specifies whether docuPrinter should open the document after the conversion in the default system viewer.
Will have no effect if there is no viewer associated with this particular output format in windows.
Syntax
DPSDK.ViewDocumentAfterConversion = value
Data type: Boolean
EmailDocumentAfterConversion
Specifies whether docuPrinter should open the document after the conversion in the default system email client.
Will have no effect if there is no default email client defined in windows.
Syntax
DPSDK.EmailDocumentAfterConversion = value
Data type: Boolean
OpenInPDFdesktopAfterConversion
Specifies whether docuPrinter should open the document after the conversion in Neevia PDFdesktop.
Syntax
DPSDK.OpenInPDFdesktopAfterConversion = value
Data type: Boolean
Note: Will work with docuPrinter Pro and TSE.
Methods
NewGUID
Return a unique identifier.
Syntax
value= DPSDK.NewGUID
Data Type: String
GetDefaultPrinter
Return the default system printer.
Syntax
value = DPSDK.GetDefaultPrinter
SetDefaultPrinter
Sets the default system printer.
Syntax
Res = DPSDK.SetDefaultPrinter(printerName)
Remarks
Res<>0 on error.
Backup docuPrinter settings.
Syntax
Res = DPSDK.BackupSettings
Remarks
Res<>0 on error.
Restores docuPrinter settings previously backed up using the BackupSettings method.
Syntax
Res = DPSDK.RestoreSettings
Remarks
Res<>0 on error.
Applies the settings to the docuPrinter.
Syntax
Res = DPSDK.ApplySettings
Remarks
Res<>0 on error.
Call this method to create the output document.
Syntax
Res = DPSDK.Create(timeOut)
Parameters
timeOut – Optional. Document creation timeout (in seconds) - if the output document is not created within the specified timeout period, Create will throw an error.
Remarks
Res<>0 on error.
TrueTypeFontDownloadOption
Sets the docuPrinter TrueType font download option.
Possible values:
0 – default
1 – download as
outline
2 – download as bitmap
3 – download as native TrueType
Syntax
result = DPSDK.TrueTypeFontDownloadOption( option )
Note: MacOS X Preview doesn't support PDF files with custom true type font encoding - Acrobat Reader for MacOS X displays this type of PDF documents without any problem. A simple workaround is to force docuPrinter to produce PDF files with type1 (PostScript) fonts. They are fully supported by MacOS X Preview. You will have to set TrueTypeFontDownloadOption=1.
FileDelete
Delete file from disk.
Syntax
result = DPSDK.FileDelete( filename )
FileInUse
Check if the file is locked by another application.
Syntax
result = DPSDK.FileInUse( filename )
FileExists
Check if the file exists.
Syntax
result = DPSDK.FileExists( filename )
FileCopy
Copy file to destination.
Syntax
result = DPSDK.FileCopy( inputfile, outputfile)
docuPrinter Word macro
Class ID
docuPrinter.WordMacro
Example:
Visual Basic: Set DPWORD = CreateObject("docuPrinter.WordMacro")
Delphi: DPWORD := CreateOLEObject(‘docuPrinter.WordMacro’);
ASP: Set DPWORD = Server.CreateObject("docuPrinter.WordMacro")
VC#: first add a reference in your project to docuPrinter library
docuPrinter.WordMacro DPWORD = new docuPrinter.WordMacro();
Properties
CHBookmarks
Specifies whether docuPrinter should convert word headings into PDF bookmarks.
Possible values: true, false
Syntax
DPWORD.CHBookmarks = value
CInternetLink
Specifies whether docuPrinter should convert word hyperlinks into PDF links.
Possible values: true, false
Syntax
DPWORD.CInternetLink = value
CCrosRef
Specifies whether docuPrinter should convert MS Word cross-reference links into PDF links.
Possible values: true, false
Syntax
DPWORD.CCrosRef = value
CCrosDoc
Specifies whether docuPrinter should convert MS Word cross-document links into PDF links.
Possible values: true, false
Syntax
DPWORD.CCrosDoc = value
LinkFootEnd
Specifies whether docuPrinter should convert MS Word footnotes and endnotes into PDF links to the respective citations.
Possible values: true, false
Syntax
DPWORD.LinkFootEnd = value
CWordTextBox
Specifies whether docuPrinter should convert Word text boxes into PDF article threads.
Possible values: true, false
Syntax
DPWORD.CWordTextBox = value
CDocInfo
Specifies whether docuPrinter should convert MS Word document info (such as author and keywords) into PDF info.
Possible values: true, false
Syntax
DPWORD.CDocInfo = value
LinkType
Specifies how the PDF links should look.
Possible values:
0 - invisible links;
1 - visible links with thin border;
2 - visible links with thick border;
Syntax
DPWORD.LinkType = value
LinkHighlight
Specifies how the PDF links should be highlighted when they are clicked.
Possible values:
0 - None
1 - Invert
2 - Outline
3 - Inset
Syntax
DPWORD.LinkHighlight = value
LinkColor
Specifies the PDF link color.
Possible values:
0 – Black
1 – Red
2 – Green
3 - Yellow
4 – Blue
5 - Magenta
6 – Cyan
7 - White
Syntax
DPWORD.LinkColor = value
LinkStyle
Specifies the PDF link border style.
Possible values: 0 - Solid, 1 - Dashed
Syntax
DPWORD.LinkStyle = value
CBookNameDest
Specifies whether docuPrinter should convert MS Word bookmarks into PDF named destinations.
Possible values: true, false
Syntax
DPWORD.CBookNameDest = value
BookmarkDepth
Possible values: 0..9
Syntax
DPWORD.BookmarkDepth = value
BookmarkMagn
Specifies the open magnification of the bookmark destination.
Possible values:
0 - Inherit Zoom
1 - Fit page width to window
2 - Fit page height to window
3 - Fit page to window
Syntax
DPWORD.BookmarkMagn = value
CFormFields
Specifies whether docuPrinter should convert MS Word form fields into PDF form fields.
Possible values: true, false
Syntax
DPWORD.CFormFields = value
RenameFormFields
Specifies whether docuPrinter should automatically rename form fields that have the same names so all the fields in the PDF document will have unique names.
Possible values: true, false
Syntax
DPWORD.RenameFormFields = value
HideTextInputBorder
Specifies whether docuPrinter should disable the text field border in the PDF file.
Possible values: true, false
Syntax
DPWORD.HideTextInputBorder = value
HideCheckBoxBorder
Specifies whether docuPrinter should disable the checkbox field border in the PDF file.
Possible values: true, false
Syntax
DPWORD.HideCheckBoxBorder = value
HideDropDownBorder
Specifies whether docuPrinter should disable the combobox/listbox field border in the PDF file.
Possible values: true, false
Syntax
DPWORD.HideDropDownBorder = value
CComNotes
Specifies whether docuPrinter should convert MS Word comments into PDF notes.
Possible values: true, false
Syntax
DPWORD.CComNotes = value
Methods
ConvertDocument
Call this method to convert the specified Word document.
Syntax
Res = DPWORD.ConvertDocument ( fileToConvert )
docuPrinter Excel macro
Class ID
docuPrinter.ExcelMacro
Example:
Visual Basic: Set DPXLS = CreateObject("docuPrinter.ExcelMacro")
Delphi: DPXLS := CreateOLEObject(‘docuPrinter.ExcelMacro’);
VC#: first add a reference in your project to docuPrinter library
docuPrinter.ExcelMacro DPXLS = new docuPrinter.ExcelMacro();
Properties
CHBookmarks
Specifies whether docuPrinter should convert excel worksheet names into PDF bookmarks.
Possible values: true, false
Syntax
DPXLS.CHBookmarks = value
CInternetLink
Specifies whether docuPrinter should convert excel hyperlinks into PDF links.
Possible values: true, false
Syntax
DPXLS.CInternetLink = value
CDocInfo
Specifies whether docuPrinter should convert MS Excel document info (such as author and keywords) into PDF info.
Possible values: true, false
Syntax
DPXLS.CDocInfo = value
LinkType
Specifies how the PDF links should look.
Possible values:
0 - invisible links;
1 - visible links with thin border;
2 - visible links with thick border;
Syntax
DPXLS.LinkType = value
LinkHighlight
Specifies how the PDF links should be highlighted when they are clicked.
Possible values:
4 - None
5 - Invert
6 - Outline
7 - Inset
Syntax
DPXLS.LinkHighlight = value
LinkColor
Specifies the PDF link color.
Possible values:
0 - Black
1 - Red
2 - Green
3 - Yellow
4 - Blue
5 - Magenta
6 - Cyan
7 - White
Syntax
DPXLS.LinkColor = value
LinkStyle
Specifies the PDF link border style.
Possible values: 0 - Solid, 1 - Dashed
Syntax
DPXLS.LinkStyle = value
CBookNameDest
Specifies whether docuPrinter should convert MS Excel worksheet names into PDF named destinations.
Possible values: true, false
Syntax
DPXLS.CBookNameDest = value
BookmarkDepth
Possible values: 0..9
Syntax
DPXLS.BookmarkDepth = value
BookmarkMagn
Specifies the open magnification of the bookmark destination.
Possible values:
4 - Inherit Zoom
5 – Fit page width to window
6 – Fit page height to window
7 – Fit page to window
Syntax
DPXLS.BookmarkMagn = value
Methods
ConvertDocument
Call this method to convert the specified Excel workbook.
Syntax
Res = DPXLS.ConvertDocument ( fileToConvert )
docuPrinter PowerPoint macro
Class ID
docuPrinter.PowerPointMacro
Example:
Visual Basic: Set DP_PPT = CreateObject("docuPrinter.PowerPointMacro")
Delphi: DP_PPT := CreateOLEObject(‘docuPrinter.PowerPointMacro’);
VC#: first add a reference in your project to docuPrinter library
docuPrinter.PowerPointMacro DP_PPT = new docuPrinter.PowerPointMacro();
Properties
CTransition
Specifies whether docuPrinter should convert PowerPoint slide transition effects into PDF page effects.
Possible values: true, false
Syntax
DP_PPT.CTransition = value
CHBookmarks
Specifies whether docuPrinter should convert PowerPoint slide names into PDF bookmarks.
Possible values: true, false
Syntax
DP_PPT.CHBookmarks = value
CInternetLink
Specifies whether docuPrinter should convert PowerPoint hyperlinks into PDF links.
Possible values: true, false
Syntax
DP_PPT.CInternetLink = value
CDocInfo
Specifies whether docuPrinter should convert PowerPoint document info (such as author and keywords) into PDF info.
Possible values: true, false
Syntax
DPSDK.CDocInfo = value
LinkType
Specifies how the PDF link should look.
Possible values:
0 - invisible links;
1 - visible links with thin border;
2 - visible links with thick border;
Syntax
DP_PPT.LinkType = value
LinkHighlight
Specifies how the PDF links should be highlighted when they are clicked.
Possible values:
8 - None
9 - Invert
10 - Outline
11 - Inset
Syntax
DP_PPT.LinkHighlight = value
LinkColor
Specifies the PDF link color.
Possible values:
0 - Black
1 - Red
2 - Green
3 - Yellow
4 - Blue
5 - Magenta
6 - Cyan
7 - White
Syntax
DP_PPT.LinkColor = value
LinkStyle
Specifies the PDF link border style.
Possible values: 0 - Solid, 1 - Dashed
Syntax
DP_PPT.LinkStyle = value
BookmarkDepth
Possible values: 0..9
Syntax
DP_PPT.BookmarkDepth = value
BookmarkMagn
Specifies the open magnification of the bookmark destination.
Possible values:
8 - Inherit Zoom
9 – Fit page width to window
10 – Fit page height to window
11 – Fit page to window
Syntax
DP_PPT.BookmarkMagn = value
BlackAndWhitePrinting
Specifies whether docuPrinter should convert the PowerPoint document into a B&W PDF file.
Possible values: true, false
Syntax
DP_PPT.BlackAndWhitePrinting = value
Methods
ConvertDocument
Call this method to convert the specified PowerPoint presentation.
Syntax
Res = DP_PPT.ConvertDocument ( fileToConvert )
Examples
For more code samples visit https://neevia.com/support/examples/dpsdk/
Example 1. Create a PDF file from Visual Basic
Sub HelloWorld()
Dim DPSDK : Set DPSDK = CreateObject("docuPrinter.SDK")
DPSDK.BackupSettings
Dim printerFound : printerFound = False
Dim objPrinter
For Each objPrinter In Printers
If objPrinter.DeviceName = "docuPrinter" Then
printerFound = True
Set Printer = objPrinter
Exit For
End If
Next
If Not printerFound Then
MsgBox "Printer not found!!!"
Exit Sub
End If
DPSDK.DocumentOutputFormat = "PDF"
DPSDK.DocumentOutputName = "demoVB"
DPSDK.DocumentOutputFolder = "c:\"
DPSDK.HideSaveAsWindow = true
DPSDK.DefaultAction=1
DPSDK.ApplySettings
Printer.FontName = "Times New Roman"
Printer.FontSize = 48
Printer.Print "Hello from Visual Basic!!!"
Printer.EndDoc
RVal = DPSDK.Create ' Create output document
If (RVal <> 0) Then MsgBox "Error while creating document!!!"
DPSDK.RestoreSettings
Set DPSDK = Nothing
MsgBox "Done!!!"
End Sub
Example 2. Convert a MS Word document into PDF from Visual Basic
Sub WordConverter()
Dim docToConvert : docToConvert="c:\test.doc"
Dim DPSDK : Set DPSDK = CreateObject("docuPrinter.SDK")
DPSDK.BackupSettings
DPSDK.DocumentOutputFormat = "PDF"DPSDK.DocumentOutputName = "demoDOC"
DPSDK.DocumentOutputFolder = "c:\" DPSDK.HideSaveAsWindow = true
DPSDK.DefaultAction=1 DPSDK.ApplySettings Dim MSWord : Set MSWord = CreateObject("Word.Application") MSWord.DisplayAlerts = False On Error Resume Next Dim NewDoc Set NewDoc = MSWord.Documents.Open(docToConvert, False, True) If Err<>0 Then Set MSWord = Nothing Exit Sub End If Dim MSWordDialog : Set MSWordDialog = MSWord.Dialogs(97) MSWordDialog.Printer = "docuPrinter" MSWordDialog.DoNotSetAsSysDefault = 1 MSWordDialog.Execute NewDoc.PrintOut False NewDoc.Close False MSWord.Quit False Set MSWord = Nothing Dim RVal : RVal = DPSDK.Create ' Create output document If (RVal <> 0) Then MsgBox "Error while creating the document!!!"
DPSDK.RestoreSettings
Set DPSDK = Nothing MsgBox "Done converting!!!"
End Sub
Example 3. Convert a MS Word document into PDF from Visual Basic (using the docuPrinter MS Word Macro)
Sub WordConverter()
Dim docToConvert : docToConvert="c:\test.doc"
Dim DPSDK : Set DPSDK = CreateObject("docuPrinter.SDK")
DPSDK.BackupSettings
DPSDK.DocumentOutputFormat = "PDF"DPSDK.DocumentOutputName = "demoDOC"
DPSDK.DocumentOutputFolder = "c:\" DPSDK.HideSaveAsWindow = true
DPSDK.DefaultAction=1 DPSDK.ApplySettings Dim DPWORD : Set DPWORD = CreateObject("docuPrinter.WordMacro") DPWORD.CHBookmarks=true DPWORD.CInternetLink=true
DPWORD.CCrosRef=true
DPWORD.CCrosDoc=true
DPWORD.LinkFootEnd=true
DPWORD.CWordTextBox=true
DPWORD.CDocInfo=true DPWORD.CBookNameDest=true DPWORD.CComNotes=true DPWORD.ConvertDocument docToConvert Set DPWORD = Nothing
DPSDK.RestoreSettings
Set DPSDK = Nothing MsgBox "Done converting!!!"
End Sub
Example 4. Convert a MS Excel document into PDF from Visual Basic
Sub ExcelConverter() Dim docToConvert : docToConvert="c:\test.xls" Dim DPSDK : Set DPSDK = CreateObject("docuPrinter.SDK")
DPSDK.BackupSettings
DPSDK.DocumentOutputFormat = "PDF"DPSDK.DocumentOutputName = "demoXLS"
DPSDK.DocumentOutputFolder = "c:\" DPSDK.HideSaveAsWindow = true
DPSDK.DefaultAction=1
DPSDK.ApplySettings Dim MSExcel : Set MSExcel = CreateObject("Excel.Application") MSExcel.DisplayAlerts = False Dim XLDoc : Set XLDoc = MSExcel.Workbooks.Open(docToConvert, 0, True) XLDoc.Activate
XLDoc.PrintOut ,,, False, "docuPrinter"XLDoc.Saved = True
XLDoc.Close MSExcel.Quit Set MSExcel = Nothing Dim RVal : RVal = DPSDK.Create ' Create output document If (RVal <> 0) Then MsgBox "Error while creating the document!!!"
DPSDK.RestoreSettings
Set DPSDK = Nothing MsgBox "Done converting!!!" End SubExample 5. Convert a MS PowerPoint document into PDF from Visual Basic
Sub PowerPointConverter() Dim documentToConvert : documentToConvert="c:\test.ppt"
Dim DPSDK : Set DPSDK = CreateObject("docuPrinter.SDK")
DPSDK.BackupSettings
DPSDK.DocumentOutputFormat = "PDF"
DPSDK.DocumentOutputName = "demoPPT" DPSDK.DocumentOutputFolder = "c:\" DPSDK.PDFAutoRotatePage = "PageByPage" DPSDK.HideSaveAsWindow = trueDPSDK.DefaultAction=1
DPSDK.ApplySettings Dim MSPowerPoint Set MSPowerPoint = CreateObject("PowerPoint.Application") Dim PPTDoc Set PPTDoc = MSPowerPoint.Presentations.Open(documentToConvert, -1, 0, 0) PPTDoc.PrintOptions.PrintInBackground=0PPTDoc.PrintOptions.PrintColorType=1
PPTDoc.PrintOptions.ActivePrinter="docuPrinter" PPTDoc.PrintOut 0PPTDoc.Close
MSPowerPoint.Quit Set MSPowerPoint = Nothing Dim RVal : RVal = DPSDK.Create ' Create output document If (RVal <> 0) Then MsgBox "Error while creating the document!!!"
DPSDK.RestoreSettings
Set DPSDK = Nothing
MsgBox "Done converting!!!"
End Sub
Example 6. Convert a PowerPoint document into PDF from Visual Basic
(using the docuPrinter PowerPoint Macro)
Sub PowerPointConverter()
Dim documentToConvert : documentToConvert="c:\test.ppt"
Dim DPSDK : Set DPSDK = CreateObject("docuPrinter.SDK")
DPSDK.BackupSettings
DPSDK.DocumentOutputFormat = "PDF"
DPSDK.DocumentOutputName = "demoPPT2"
DPSDK.DocumentOutputFolder = "c:\"
DPSDK.PDFAutoRotatePage = "PageByPage"
DPSDK.HideSaveAsWindow = true
DPSDK.DefaultAction=1
DPSDK.ApplySettings
Dim DPPPT : Set DPPPT = CreateObject("docuPrinter.PowerPointMacro")
DPPPT.CTransition=true
DPPPT.CHBookmarks=true
DPPPT.CInternetLink=true
DPPPT.CDocInfo=true
DPPPT.ConvertDocument documentToConvert
Set DPPPT = Nothing
DPSDK.RestoreSettings
Set DPSDK = Nothing
MsgBox "Done converting!!!"
End Sub
Example 7. Convert a MS Access report into PDF from Visual Basic
Sub AccessConverter() Dim DPSDK : Set DPSDK = CreateObject("docuPrinter.SDK")
DPSDK.BackupSettings
DPSDK.DocumentOutputFormat = "PS"
DPSDK.DocumentOutputName = "demoAccess" DPSDK.DocumentOutputFolder = "c:\" DPSDK.DocumentResolution = 300 DPSDK.HideSaveAsWindow = trueDPSDK.DefaultAction=1
DPSDK.ApplySettings Dim objAccess Set objAccess = CreateObject("Access.Application") Dim defPrinter : defPrinter=DPSDK.GetDefaultPrinter DPSDK.SetDefaultPrinter "docuPrinter" objAccess.OpenCurrentDatabase "c:\access.mdb", true objAccess.DoCmd.OpenReport "rptCatalog", 0 'rptCtatalog is the repport name objAccess.Quit 2 Set objAccess=nothing RVal = DPSDK.Create ' Create output document If (RVal <> 0) Then MsgBox "Error. Create returns "+CStr(Rval) DPSDK.SetDefaultPrinter defPrinter
DPSDK.RestoreSettings
Set DPSDK = Nothing MsgBox "Done converting!!!" End Sub
Example 8. Convert an URL / HTML into PDF from Visual Basic
Sub URLConverter() Dim IE : Set IE = CreateObject("InternetExplorer.Application") IE.Visible=true Dim DPSDK : Set DPSDK = CreateObject("docuPrinter.SDK")
DPSDK.BackupSettings
IE.navigate2 "http:\\www.neevia.com" DPSDK.doSleep 100 While (IE.ReadyState<>4) or (IE.Busy)DPSDK.doSleep 100
Wend DPSDK.DocumentOutputFormat="PDF"DPSDK.DocumentOutputFolder="c:\"
DPSDK.DocumentOutputName="testURL" DPSDK.HideSaveAsWindow = true
DPSDK.DefaultAction=1 DPSDK.ApplySettings Dim defPrinter : defPrinter = DPSDK.GetDefaultPrinter DPSDK.SetDefaultPrinter "docuPrinter" IE.ExecWB 6,2 Dim RVal : RVal = DPSDK.Create If (RVal <> 0) Then MsgBox "Error while creating the document!!!" IE.Quit DPSDK.SetDefaultPrinter defPrinter Set IE=Nothing
DPSDK.RestoreSettings
Set DPSDK=Nothing MsgBox "Done converting!!!" End Sub
