Title page
Neevia
docuPrinter TSE
user’s manual
version 5.5
ELECTRONIC END USER LICENSE AGREEMENT
For One (1) Server
This is an End User License Agreement. This is a contract. If you install this software, you must abide by the terms of this agreement. This license is applicable to all software products sold by Neevia Technology. The term software includes upgrades, modified versions or updates. This software is licensed and not sold. Only a personal, non-transferable and nonexclusive right to use the Neevia products is granted to the end user.
The following are definitions that should be noted by the user:
SERVER
This is a single computer owned, rented or leased by a single individual or entity on which one or more applications load and execute software in the memory space of that computer. Software is installed on a computer for one or more users. All computers must be licensed to utilize Neevia software.
THIS IS A CONTRACT BETWEEN YOU AND NEEVIA TECHNOLOGY. YOU SHOULD CAREFULLY READ THIS LICENSING AGREEMENT AND MUST ACCEPT ALL THE TERMS AND CONDITIONS BEFORE INSTALLING THIS NEEVIA SOFTWARE. BY INSTALLING THE SOFTWARE, YOU ARE AGREEING TO BE BOUND BY THE TERMS AND CONDITIONS OF THIS LICENSE. IF YOU DO NOT AGREE TO THE TERMS OF THIS LICENSE, DO NOT INSTALL THE SOFTWARE, AND DO NOT USE THE SOFTWARE. IF YOU VIOLATE THIS AGREEMENT, YOU WILL BE SUBJECT TO LEGAL ACTION BY NEEVIA TECHNOLOGY.
Subject to the payment of applicable license fees, Neevia Technology grants you a nonexclusive right to use its accompanying Neevia software product and related documents (the Software) in the terms and conditions provided as follow:
LICENSE
Until such time as Neevia Technology has issued a valid serial number to you, you may only use this software for a 30-day trial period. You agree to remove any copies of the software after the expiration of the trial period. No license is issued to you until you are issued a valid serial number.
You cannot use a license for the software concurrently on different computers. You may install and use the Software in a single location on a hard disk or other storage device of one computer only.
(a) Home Use:
The primary user of each computer on which the Software is installed or used may also install the Software on one home or portable computer. However another person may not use the Software on a secondary computer at the same time the Software on the primary computer is being used.
(b) Storage / Network Use:
You may keep one copy of the Software on a single file server only for the purposes of downloading and installing the Software onto a hard disk. You need a server license for each server with the Software installed. There are no limitations on the number of clients that connect to the server and use the Software. A license for the SOFTWARE may not be shared or used concurrently on different computers.
(c) Operating system or Language versions:
If you receive two or more copies of the Software with different operating systems or language versions, the total aggregate number of computers on which all versions of the Software are used may not exceed the Permitted Number of Computers. You may not rent, lease, sublicense, lend or transfer versions or copies of the Software you do not use, or Software contained on any unused media.
(d) Archiving:
You may make one copy of the Software solely for archival purposes. If the Software is an upgrade, you may use the Software only in conjunction with upgraded product. If you receive your first copy of the Software electronically, and a second copy on media afterward, the second copy can be used for archival purposes only.
For all Neevia Technology products, you agree that you will only use our software on a server and all applications that will access the server will reside on the server and you will not permit remote access to the software except through your application residing on the server. You agree to surrender your license(s) if you violate this agreement. If you violate this agreement, you will not receive a refund upon termination of this license. You agree not to utilize our software to violate the copyright of any third parties. If you do violate the copyright of a third party utilizing our software, you agree to hold Neevia Technology harmless and will indemnify Neevia Technology for any such activity even if the violation is unintentional.
COPYRIGHT
The Software is owned by Neevia Technology and/or its suppliers, and is protected by the copyright and trademark laws of the United States and related applicable laws. You may not copy the Software except as set forth in the "License" section. Any copies that you are permitted to make pursuant to this Agreement must contain the same copyright and other proprietary notices that appear on or in the Software.
You may not rent, lease, sub-license, transfer, or sell the Software. You may not modify, translate, reverse engineer, decompile, disassemble, or create derivative works based on the Software, except to the extent applicable law expressly prohibits such foregoing restriction. You may use the trademarks to identify the Software owner's name, or to identify printed output produced by the Software. Such use of any trademark does not give you any rights of ownership in that trademark.
NO WARRANTY LICENSED SOFTWARE (S) - "AS IS"
The Software is provided AS IS. NEEVIA TECHNOLOGY AND ITS SUPPLIERS MAKE NO WARRANTIES, EXPRESS OR IMPLIED, AS TO THE MERCHANTABILITY, QUALITY, NONINFRINGEMENT OF THIRD PARTY RIGHTS, FITNESS FOR A PARTICULAR PURPOSE, AND THOSE ARISING BY STATUTE OR OTHERWISE IN LAW OR FROM A COURSE OF DEALING OR USAGE OF TRADE. THE ENTIRE RISK AS TO THE QUALITY, RESULTS BY USING THE SOFTWARE, AND PERFORMANCE OF THE SOFTWARE IS WITH THE END USER. Some states or jurisdictions do not allow the exclusion or limitation of incidental, consequential or special damages, or the exclusion of implied warranties or limitations on how long an implied warranty may last, so the above limitations may not apply to your or your company.
LIMITATION OF REMEDIES AND LIABILITY
NEEVIA TECHNOLOGY OR ITS SUPPLIERS OR RESELLERS SHALL NOT UNDER ANY CIRCUMSTANCE BE LIABLE TO YOU FOR ANY DAMAGES, INCLUDING BUT NOT LIMITED TO SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, LOST PROFITS OR LOST SAVINGS, OR FOR ANY CLAIM BY A THIRD PARTY, ARISING OUT OF THE USE OR INABILITY TO USE THE SOFTWARE, EVEN IF NEEVIA TECHNOLOLGY SHALL HAVE BEEN INFORMED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER PARTY.
GENERAL
This Agreement shall be construed, interpreted, and governed by the laws of the State of Florida, excluding the application of its conflicts of law rules. The United Nations Convention on Contracts of the International Sale of Goods, will not govern this Agreement. If any part of this Agreement is found void and unenforceable, it will not affect the validity of the rest of the Agreement, which shall remain valid and enforceable according to its terms.
If you need to redistribute this product with your own software products, you need to contact Neevia and negotiate a separate licensing and royalty agreement.
You may not ship, transfer, or export the Software into any country or used in any manner prohibited by any export laws, restrictions or regulations.
UPGRADES
You must be properly licensed to install upgrades to Neevia Software products. Neevia upgrades replace and or supplement the previous product that formed the basis for your eligibility to for the upgrade. You may use the upgrade only in accordance with the terms of this Agreement. Upgrades may not be separated and used on separate computers.
GOVERNEMENT USERS
For United States government users, the Software and associated Documentation are deemed to be "commercial computer software" and "commercial computer documentation", respectively pursuant to DFAR 227.7202 and FAR 12.212(b) as applicable.
ENTIRE AGREEMENT
You acknowledge that you have read this Agreement, understand it and agree to be bounded by its terms and conditions. It is the complete and exclusive statement of the Agreement between us, which supersedes any proposal or prior agreement, oral or written, and other communication between us relating to the subject matter of this Agreement.
CONTACT INFORMATION
NEEVIA TECHNOLOGY
103 NE 4th Street
Fort Lauderdale, Florida 33301
Tel: (954) 893.9343
Email: info@neevia.com
Installing and Uninstalling Neevia docuPrinter TSE
Select the Paper Size and Orientation
Select the output file name and format
Create PDF files from Microsoft Word
Create PDF files from Microsoft Excel
Create PDF files from Microsoft PowerPoint
Create PDF files from Microsoft Publisher
Convert PostScript or Encapsulated PostScript (EPS) files
Create Encapsulated PostScript (EPS) files
Configure docuPrinter TSE from the administrative console
Append pages to a PDF document …
Encrypt the PDF document produced by docuPrinter TSE…
Insert additional pages at the beginning of an existing PDF
Neevia docuPrinter TSE
Introduction
Neevia docuPrinter TSE is a printer driver that can be used in a multi-user environment. That means you must print to it from your published application, just as you would with any other printer. Most applications have a Print dialog box command available in the File menu. To use docuPrinter TSE:
1. Connect to your terminal server;
2. Go into the File menu of your published application and select Print;
3. Select "docuPrinter" as a printer;
4. Click OK;
5. Wait for the docuPrinter dialog to appear;
System Requirements
The system requirements are:
• Windows NT4.0, 2000 AS or 2003.
• At least 15 MBytes of free disk space.
• Memory requirement is heavily dependent on the nature of the job being converted.
Output Formats
docuPrinter TSE supports the following output formats:
· PDF (Portable Document Format) v1.2, v1.3, v1.4, v1.5, v1.6;
· PostScript level 1, 1.5, 2, 3;
· TIFF (uncompressed, LZW, Packbits, G3, G4);
· JPEG;
· PCX;
· PNG;
· BMP;
· EPS level 1, 1.5, 2, 3;
· Adobe PhotoShop (PSD);
· HP PCL-XL (color and mono);
· Text;
Installing and Uninstalling Neevia docuPrinter TSE
Before installing and/or using this product, please make sure you have carefully read the copyright notice and agreed to all of its terms. If you have any questions about the licensing agreement, please feel free to call (954) 981.9252 or email sales@neevia.com.
If you are using an earlier version of Neevia DocuPrinter on your system, it is recommended that you uninstall it before installing Neevia docuPrinter TSE v5.5.
To install Neevia docuPrinter TSE:
download and save the http://neevia.com/prods/dptse.exe file to your hard disk. After downloading the file, double-click on it and follow the instructions. The installation procedure automatically detects your operating system, copies the needed files into your system directory and installs Neevia docuPrinter TSE.
NOTE: On Windows NT, Windows 2000 and Windows 2003, you must be logged in as an Administrator to install docuPrinter TSE.
Unattended installation:
To perform an unattended (silent) installation launch docuPrinter TSE installer with /sp- /verysilent /norestart command line switches. Here is the full list of supported switches:
/SP-
Disables the "This will install... Do you wish to continue?" prompt at the beginning of Setup.
/SILENT, /VERYSILENT
Instructs Setup to be silent or very silent. When Setup is silent the wizard and the background window are not displayed but the installation progress window is. When Setup is very silent the installation progress window is not displayed. Everything else is normal so for example error messages during installation are displayed and the startup prompt is (if you haven't disabled it with '/SP-' command line option explained above). If a restart is necessary and the '/NORESTART' command is not used (see below) and Setup is silent, it will display a “Reboot now?” dialog. If it's very silent it will reboot without asking.
/NOCANCEL
Prevents the user
from canceling during the installation process, by
disabling the Cancel button and ignoring clicks on the close button. Useful
along with /SILENT.
/NORESTART
Instructs Setup not to reboot even if it's necessary.
/DIR="x:\dirname"
Overrides the default directory name displayed on the Select Destination Directory wizard page. A fully qualified pathname must be specified.
/GROUP="folder name"
Overrides the
default folder name displayed on the Select Start Menu Folder
wizard page.
/NOMACRO
Prevents docuPrinter from installing the Microsoft Word, Excel, PowerPoint and Publisher macros.
/NOWORD
Disables the Microsoft Word docuPrinter macros installation. (Cannot be used with /NOMACRO switch)
/NOEXCEL
Disables the Microsoft Excel docuPrinter macros installation. (Cannot be used with /NOMACRO switch)
/NOPOWERPOINT
Disables the Microsoft PowerPoint docuPrinter macros installation. (Cannot be used with /NOMACRO switch)
/NOPUBLISHER
Disables the Microsoft Publisher docuPrinter macros installation. (Cannot be used with /NOMACRO switch)
/user="username", /company="company name", /serial="serial number"
Use these switches to pass the registration info (username, company name and serial number) to the installer.
To remove Neevia docuPrinter TSE from your system:
1. Select Settings -> Control Panel from the Start menu.
2. In the Control Panel click Add/Remove programs and select docuPrinter TSE from the list.
3. Click the Add/Remove button to remove the program.
A confirmation prompt is displayed.
NOTE: In some circumstances the uninstaller is unable to remove the Neevia docuPrinter TSE printer from the Windows printing system. If this happens, you should reboot your computer and uninstall again.
Unattended uninstall:
To perform an unattended (silent) uninstall, launch unins000.exe from the folder where docuPrinter TSE has been installed with /verysilent /norestart command line switches. Here is the full list of supported switches:
/SILENT, /VERYSILENT
When specified, the uninstaller will not ask the user for startup confirmation or display a message stating that uninstall is complete. Shared files that are no longer in use are deleted automatically without prompting. Any critical error messages will still be shown on the screen. When '/VERYSILENT' is specified, the uninstallation progress window is not displayed. If a restart is necessary and the '/NORESTART' command isn't used (see below) and '/VERYSILENT' is specified, the uninstaller will reboot without asking.
/NORESTART
Instructs the uninstaller not to reboot even if it’s necessary.
Registering docuPrinter TSE
To register docuPrinter TSE, print something to it using the administrator account, then in the docuPrinter "Save As" window (screenshot) press the Configure button, after this in the next screen press the Register button – you should see this screen:
Enter the registration info from the email we sent you (make sure that you enter the User Name, Company Name and Serial Number EXACTLY as they are in the email message) and press the Register button.
Getting Started
Neevia docuPrinter TSE is a printer driver designed to be used in a multi-user environment. That means you must print to it from your application, just as you would with any other printer. Most applications have a Print dialog box command available in the File menu. To use docuPrinter TSE:
1. Connect to the terminal server;
1. Go into the File menu of your published application and select Print;
2. Select "docuPrinter" as a printer;
3. Click OK;
4. Wait for the docuPrinter dialog to appear;
Select the Paper Size and Orientation
1. In the Start menu, choose Settings -> Printers.
2. Right-click the docuPrinter printer, then choose Properties.
3. Click the "Printing Preferences …" button. After this in the next screen click the "Advanced…" button. You should see this screen:
4. Adjust the values for the paper size, page orientation and scaling as desired.
5. To specify custom paper sizes, see Defining Custom Paper Sizes.
6. Click OK.
Define Custom Paper Sizes
To create a custom paper size:
1. In windows click Start, point to Settings, and then click Printers and Faxes.
2. On the File menu, click Server Properties.
3. On the Forms tab, select the Create a new form checkbox.
4. In Form name, type a name for the new form.
5. Under Form description (measurements), type the dimensions you want for the new paper size.
6. Click OK.
Select the output file name and format
When you print to Neevia docuPrinter TSE from a published application, docuPrinter prompts you for a destination folder for the output file – see the image below.
The default destination folder is the last folder you used, and the file name is constructed from the document name provided by the application. You may change either of these before clicking the Save button to save the output file.

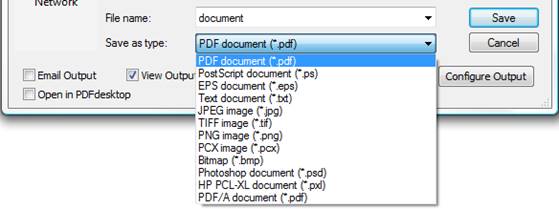

You can select the output document format by expanding the list next to "Save as type" and selecting the format you need
View document after printing
When you print to Neevia docuPrinter TSE from a published application, docuPrinter prompts you for a destination folder for the output file (screenshot). In that window select the desired output folder and document name, check the "View Output" checkbox and press the "Save" button – docuPrinter will create the output document and then display it on screen.
Email document after printing
When you print to Neevia docuPrinter TSE from a published application, docuPrinter prompts you for a destination folder for the output file (screenshot). In that window select the desired output folder and document name, check the "Email Output" checkbox and press the "Save" button – docuPrinter will create the output document and then launch the default email program from windows.
Watermark and Stationery
With docuPrinter TSE you can apply a watermark / stationery to the output document. To do this print to docuPrinter, then in the docuPrinter "Save As" screen (screenshot) select your output file format and press the Watermark button – the following screen will be displayed:
Enter your text and select the desired font. By modifying the values for X Offset, Y Offset and Angle you can change the watermark position on the resulting document.
To place it on all pages simply enter 0 in the "Place on page(s)" textbox otherwise enter page numbers separated by commas.
In case you want to use an existing PS, EPS or PDF file as stationery click on the "Stationery" tab and enter the path to the file. To have the stationery appear an all your pages enter 0 in the "Place on page(s)" textbox otherwise enter page numbers separated by commas.
Create PDF files
When you print to Neevia DocuPrinter TSE from a published application, docuPrinter prompts you for a destination folder for the output file (screenshot). In that window select PDF as output format then press the "Configure Output" button to edit the output settings – the following screen will be displayed:

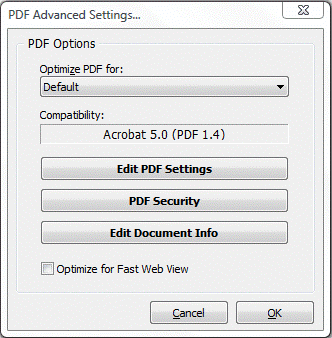

Optimize for
For your convenience there are several sets of predefined settings for creating PDF files. These settings are designed to balance file size with quality, depending on how the PDF file is to be used:
• Default - is intended to be useful across a wide variety of uses, possibly at the expense of a larger output file. All color and grayscale images are downsampled at 72 dpi, monochrome images at 300 dpi; subsets of all fonts used in the file are embedded; and all information is compressed. PDF files created using this setting are compatible with Acrobat 4.0 (and later).
• Screen - is for PDF files that will be displayed on the World Wide Web or an intranet, or that will be distributed through an e-mail system for on-screen viewing. This set of options uses compression, downsampling, and a relatively low resolution; converts all colors to RGB; maintains compatibility with Acrobat 3.0; to create a PDF file that is as small as possible.
• Printer - is for PDF files that are intended for desktop printers, digital copiers, publishing on a CD-ROM, or to send to a client as a publishing proof. In this set of options, file size is still important, but it is not the only objective. This set of options uses compression and downsampling to keep the file size down, tags everything for color management, and prints to a medium resolution to create a reasonably accurate rendition of the original document.
• Prepress - is for PDF files that will be printed as high-quality final output to an imagesetter or platesetter, for example. In this case, file size is not a consideration. The objective is to maintain all the information in a PDF file that a commercial printer or service bureau will need to print the document correctly. This set of options downsamples color and grayscale images at 300 dpi, monochrome images at 1200 dpi, embeds subsets of all fonts used in the file, prints to a higher resolution, and uses other settings to preserve the maximum amount of information about the original document.
PDF Settings
To edit the PDF settings click the "Edit PDF settings" button – you should see this screen
There are 5 tabs on the top of the screen:
General - Specify compatibility level, document resolution, optimization and other general information;
Compression - choose appropriate compression options to reduce the size of the output PDF document;
Fonts - select the font embedding options;
Color - select the color profiles for the output PDF file;
PDF Open Options - select the color profiles for the output PDF file.
General Tab
Compatibility
Select the PDF document compatibility level (a.k.a. PDF version).
Auto-Rotate Pages
Auto-Rotate Pages automatically rotates pages based on the orientation of the text. For example, some pages (such as those containing tables) in a document may require the document to be turned sideways to be read. Choose "None" to disable the Auto-Rotate Pages option. Choose "All" to rotate all pages in the document based on the orientation of the majority of text. Choose "PageByPage" to rotate each page based on the direction of the text on that page.
Resolution
Here you can define the output document resolution. Usually, a higher resolution setting will result in larger but higher quality PDF, while a lower setting will result in smaller but lower quality PDF. You can enter a value from 72 to 2400.
Important: Low resolution is ideal for screen viewing. However, if high-quality paper print or the accurate control of character position is required, you should choose resolution above (include) 600dpi.
Encode binary streams to ASCII85
Enabling this option will force docuPrinter to encode binary strings in the PDF file with ASCII85 algorithm.
Compression Tab
Neevia docuPrinter TSE allows you to compress images (bitmaps), text, and graphics (line art). ReSampling feature provides a further reduction to very large or high-resolution images.
Since the effectiveness of compression is highly data dependent for the best result, you might want to try different compression setting for different kinds of data sources.
Compression/Image Quality
Set the compression to be applied to color, grayscale, and monochrome images. For color and grayscale images, also set the image quality. For color or grayscale images, choose ZIP to apply the compression that works well on images with large areas of single colors or repeating patterns, such as screen shots, simple images created with paint programs, and black-and-white images that contain repeating patterns. Choose JPEG, quality minimum to maximum, to apply the compression that is suitable for grayscale or color images, such as continuous-tone photographs that contain more detail than can be reproduced on-screen or in print. Choose Automatic to determine automatically the best quality for color and grayscale images.
NOTE: For monochrome images, choose CCITT or ZIP compression.
Make sure that monochrome images are scanned as monochrome and not as grayscale. Scanned text is sometimes saved as grayscale images by default. Grayscale text compressed with the JPEG compression method is “muddy” at best and may be unreadable.
ReSample
To resample color, grayscale, or monochrome images, docuPrinter combines pixels in a sample area to make one larger pixel. You provide the resolution of your output device in dots per inch (dpi) and select the resample algorithm:
Average Downsample – this algorithm averages the pixels in a sample area and replaces the entire area with the average pixel color at the specified resolution.
Subsample – this algorithm chooses a pixel in the center of the sample area and replaces the entire area with that pixel at the specified resolution. Subsample significantly reduces the conversion time compared with downsampling but results in images that are less smooth and continuous.
Bicubic Downsample – this algorithm uses a weighted average to determine pixel color and usually yields better results than the simple averaging method of downsampling. Bicubic is the slowest but most precise method, resulting in the smoothest tonal gradations.
NOTE: Resampling monochrome images can have unexpected viewing results, such as no image display. If this happens, turn off resampling and convert the file again. This problem is most likely to occur with subsample and least likely with bicubic downsample.
Max inline image size
Specifies the maximum size of an inline image in bytes. For images larger than this size, docuPrinter will create a XObject instead of embedding the image into the context stream. The default value is 4000. Note that redundant inline images must be embedded each time they occur in the document, while multiple references can be made to a single XObject image. Therefore it may be advantageous to set a small or zero value if the source document is expected to contain multiple identical images, reducing the size of the generated PDF.
